Engineered for Square & Flat Bottles with 8-Axis Stabilization.
Achieve superior ±1mm alignment accuracy even at high speeds for premium cosmetics and daily chemicals.

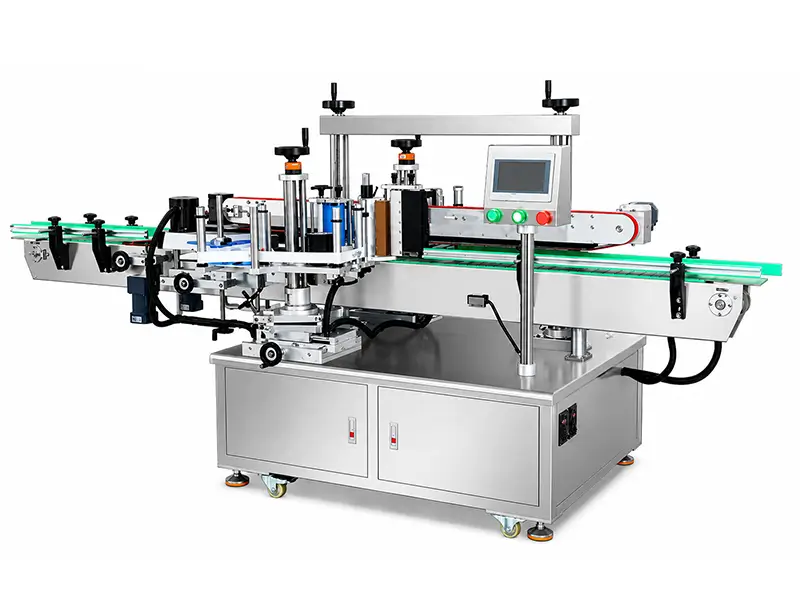

Conventional equipment often suffers from skewing or asymmetrical placement on square bottles. The HL-T-502 utilizes synchronized top-pressing technology and an 8-axis physical adjustment system to ensure containers remain rock-steady, solving bubbles and skewing issues for good.
Supports 360° micro-tuning across height, width, depth, and inclination angles.
Mechanically stabilizes the container via an overhead pressure belt during transport.
Applies flexible, high-frequency rolling to expel residual air.
PLC precisely controls two heads for simultaneous output.
Feeding mechanism ensures bottles enter at consistent intervals.
Top-pressing unit descends, locking the bottle onto the conveyor.
High-precision sensors capture position for the servo system.
Two servo heads apply labels to both sides simultaneously.
Sponge rollers press labels for a smooth, bubble-free fit.
| Category | Attribute | Value |
|---|---|---|
| Performance | Production Speed | 1,800 – 9,600 pcs/h |
| Precision | Labeling Accuracy | ±1 mm |
| Bottle Compatibility | Height Range | 60 mm – 280 mm |
| Width Range | 40 mm – 100 mm | |
| Hardware | Controller | Siemens or Mitsubishi PLC |
| Sensors | Brand | Leuze (Germany) or Keyence (Japan) |
| Physicals | Machine Size | 3,150 * 1,400 * 1,450 mm |
| Machine Weight | 300 kg |
Perfect alignment for perfume squares and essence bottles.
5L laundry detergent jugs and dish soap flats.
Anti-wrinkle labeling for lubricants and antifreeze.
Precise orientation for sauce jars and square oil bottles.
Achieve precision 360° oriented labeling on the same machine.
Specialized sensors for detecting clear or reflective labels.
TTO or CIJ units to print batches during the labeling process.
See the results for yourself with your own containers.
Provide your bottle dimensions.
Ship containers to our Dongguan base.
Receive a 4K testing video and Engineering Layout.
✔ Response within 12 hours
✔ Free sample testing available
✔ Custom solution & quotation
