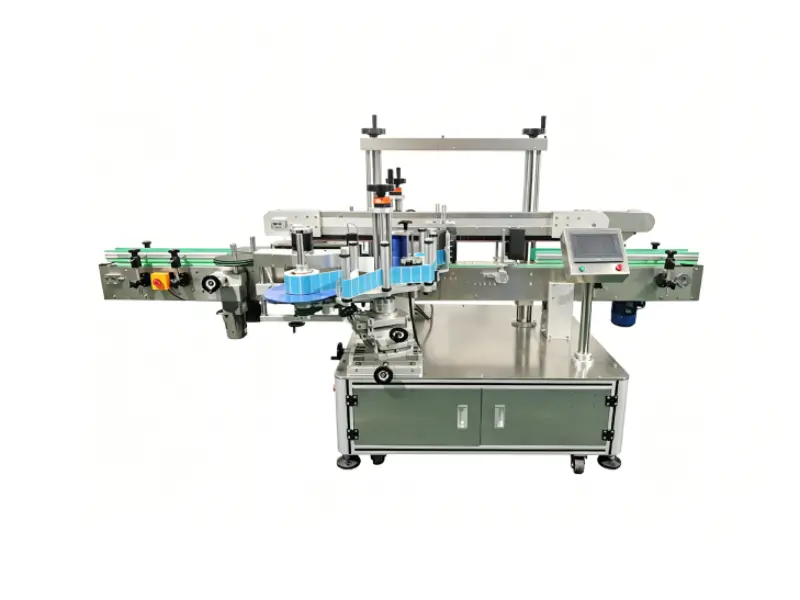

Fully automatic double-side labeling machine that simultaneously applies labels to two opposite sides of bottles and containers. Suitable for flat, square, and round products, with support for both manned and unmanned production-line integration.
How can you apply front-and-back labels accurately in a single automated operation?
Applying two labels to opposite sides of the same bottle manually is slow and makes consistent positioning difficult. This is especially challenging for flat, square, tapered, or irregular containers that need the two labels to remain correctly aligned.
The T-962 solves this by automatically centering and stabilizing each container, then applying two labels simultaneously in one pass. Its adjustable positioning system accommodates different bottle shapes and thicknesses, while the separator wheel and guiding mechanism help prevent bottle movement during labeling.
The result: one-pass double-side labeling with less manual handling and more consistent label positioning, suitable for production-line operation.
Applies two labels simultaneously in a single pass.
Suitable for flat and square bottles, such as disinfectant bottles.
Adjustable vertically, horizontally, front-to-back, and through four tilt angles to accommodate tapered or irregular containers.
Keeps bottles accurately centered, minimizing product drift and preventing contact with the labeling plates.
Supports both manned and unmanned operation.
Infeed
Separator wheel spaces the bottles to prevent rotational drift
Centering mechanism straightens and centers the bottle
Dispensing plate feeds the labels
Pressing device applies the labels
Automatic discharge
| Category | Attribute | Value |
|---|---|---|
| Precision | Labeling Accuracy | ±1 mm (excluding product and label tolerances) |
| Performance | Labeling Speed | 30–160 pcs/min (varies depending on product and label dimensions) |
| Compatibility | Applicable Product Diameter | Ø30–Ø150 mm |
| Label Specs | Label Width | 5–700 mm |
| Label Length | ≥20 mm | |
| Physicals | Machine Dimensions | Approx. 3,002 × 1,299 × 1,520 mm (L × W × H) |
| Machine Weight | Approx. 330 kg | |
| Power | Power Supply | 220 V / 50–60 Hz |
Flat bottles, square bottles (e.g. disinfectant bottles), round bottles and containers, and other products requiring front-and-back double-side labeling.
— risk of pinching injuries.
Reaching into the gaps of the roller conveyor to retrieve fallen products may result in serious hand injuries, including finger fractures.
to ensure smooth and stable operation.
Prints production dates, batch numbers, and other variable information during the labeling process.
Detects the product as it passes through the center gap of the machine; the bottle must pass through this detection area.
Accommodates tapered and irregularly shaped bottles and containers.
Stop manually applying front-and-back labels.
Test your products on the T-962 and verify the labeling result before you invest.
Provide your bottle shape, dimensions, label size, and required output.
Send us your bottles and labels. We can test the T-962 with your actual products and verify two-side labeling accuracy.
Receive a recommended machine configuration and factory-direct quotation for your application, including optional coding or production-line integration.
